Features
- Low Eon and Err
- Soft body diode with low overshoot and ringing
- Low RDS(on) temperature coefficient
- High Ciss/Crss ratio
- Wide gate voltage compatibility [-4 to 0 V / 15 to 18V]
- High transient voltage compatibility
CMHSA040120J2

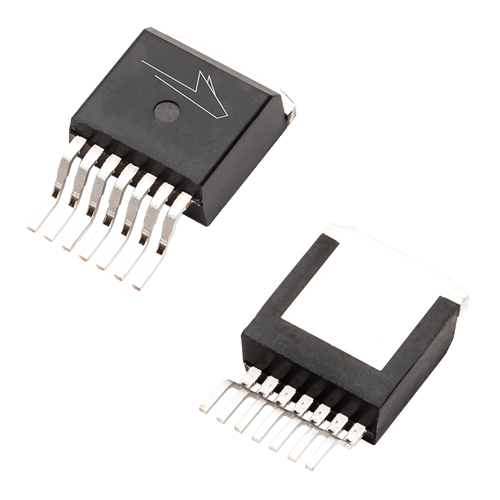

1200 V, 47 mΩ, TO-263-7 XL package, Industrial qualified, Discrete Silicon Carbide (SiC) MOSFET
Note Coming Soon.
Parametric Data
1200 V CMHSA Discrete MOSFETs
No filters selected, showing all 1 products
End of Section
Ordering & Compliance
CMHSA040120J2 Ordering
| Part Number | XCMHSA040120J2-TR |
|---|---|
| Order Status | Coming Soon |
| Request Sample | |
| Package | TO-263-7 XL T&R |
| Container Type | Tape & Reel |
| Container Qty. | 800 |
| Standard Packing Qty. | 800 |
| Minimum Order Qty. | 800 |
CMHSA040120J2 Compliance
| California Prop 65 | Learn More |
|---|---|
| ECCN | EAR99 |
Related Documents
CMHSA040120J2 Related Documents
| Soldering & Handling | |
|---|---|
| Packing & Shipping |
Product Details
Benefits
- Ideal for hard-switched applications
- Lower losses enabling higher efficiency switching frequency, and cooling requirements
- Enables system level price-performance optimization
Typical Applications
- Low voltage industrial drives
- Power supply
- Servo drives
- Fast charging
- Energy storage systems
- Solar – commercial applications
